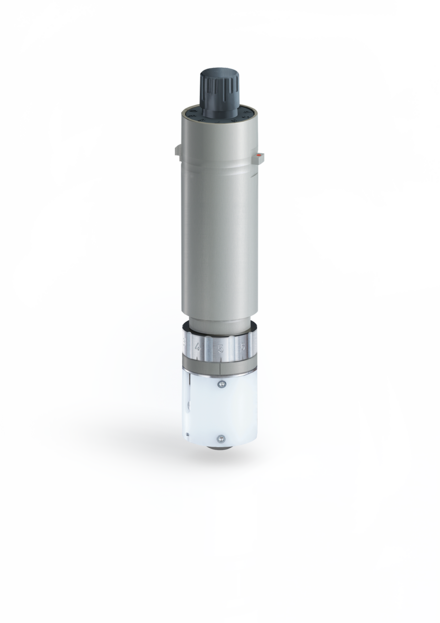

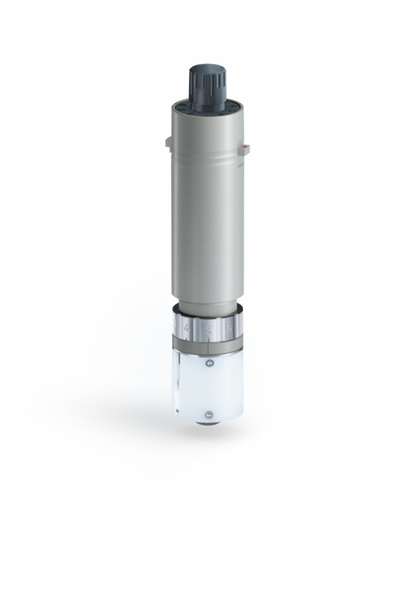

Zund Cutting Tool - PCT

For cutting and simultaneously compressing corrugated cardboard up to 7 mm/0.28 in thick. For use with drag knives with blade-shaft thickness 0.63 mm.

The press cutting tool has been developed for economical cutting of corrugated cardboard up to a thickness of 7 mm. During the cutting process, a specially designed glide shoe compresses the material along the cut lines. The pressure exerted on the corrugated cardboard enables the use of drag knives and facilitates high processing speeds.

• Special glide shoe for high-quality results equal to die-cutting

• Very high processing speeds

• Simple, precise depth adjustment

• Fully supported in Zünd Cut Center - ZCC

• Maximum material thickness: 7 mm

• Suitable for flat-stock drag knives

• Compatible with G3, D3, and S3

Materials: Corrugated cardboard
